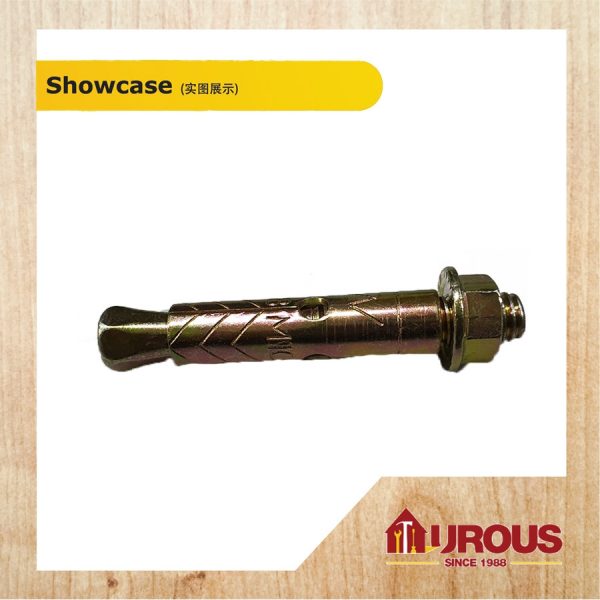

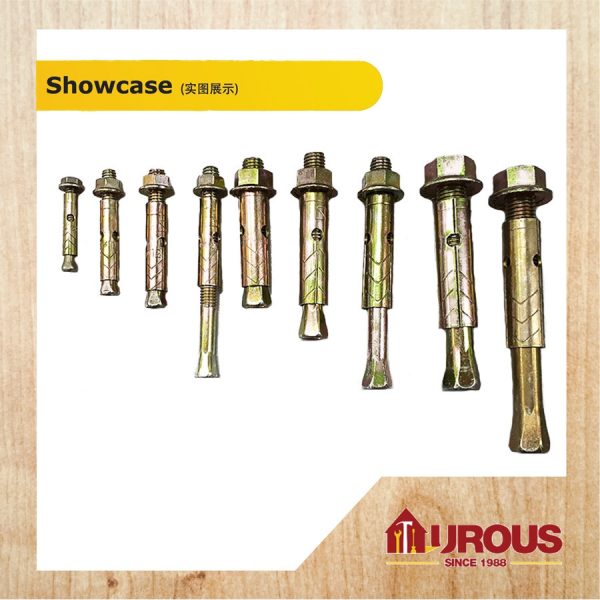

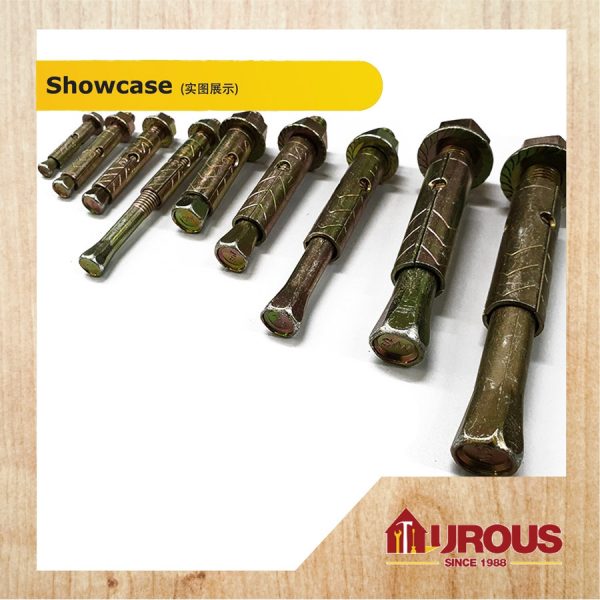

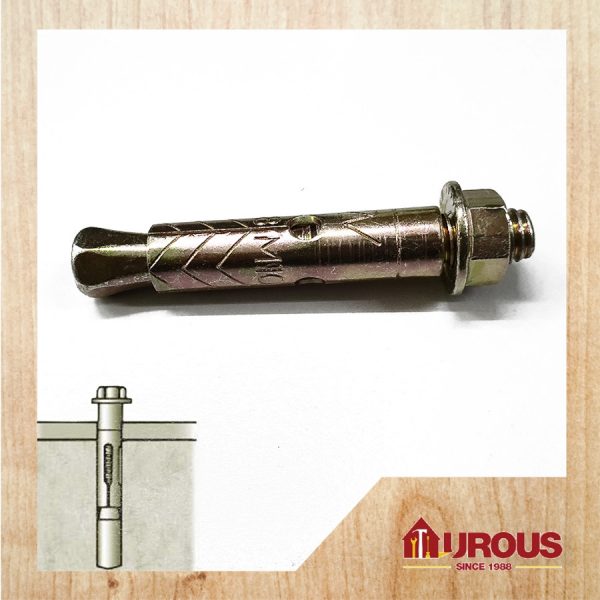

Sleeve anchor wall plug 8mm/10mm (one box)

ITEM INCLUDED :
Sleeve anchor wall plug (one box)
Size and Diameter :

1/4'' x 2''      Ø8MM     (200pcs/Box)
5/16'' x 2 3/4''      Ø10MM    (100pcs/Box)

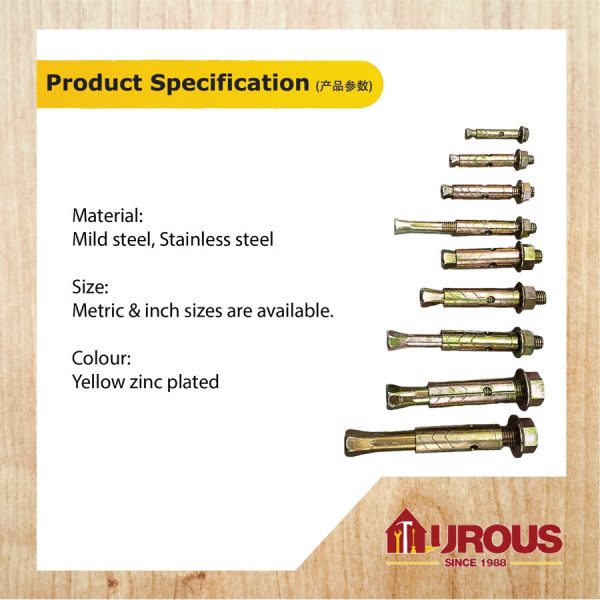

Material:
Mild steel, Stainless steel

Finish treatment:
Yellow zinc plated

Applications:

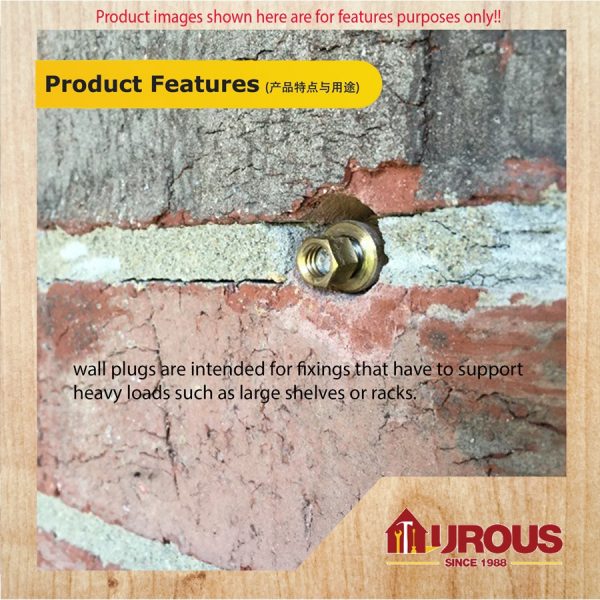

Light to medium duty into concrete, brick and block
Cable trays
Window and door frames
Shelving and racking

Features:

Heavy loading capacity

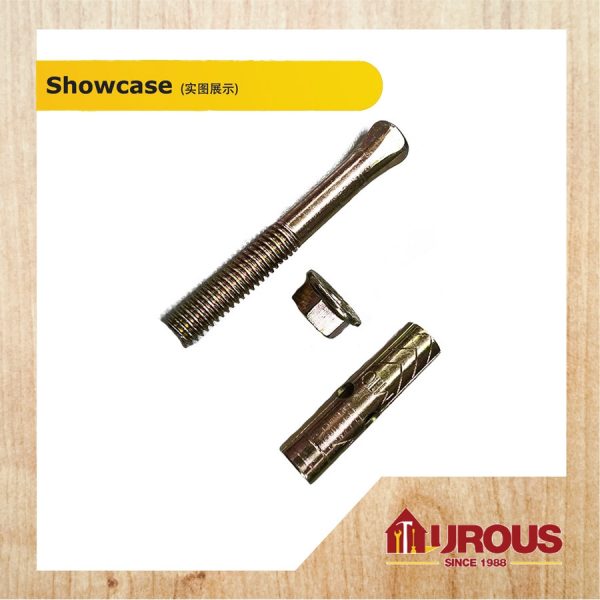

Pre-assembled for faster & easier installation
Sleeve design improve holding power
Anti corrosion

Technical Information:

Drill correct diameter hole to recommended depth.
Clean hole thoroughly with a nylon brush. Remove debris by way of vacuum pump, compressed air, hand pump etc.

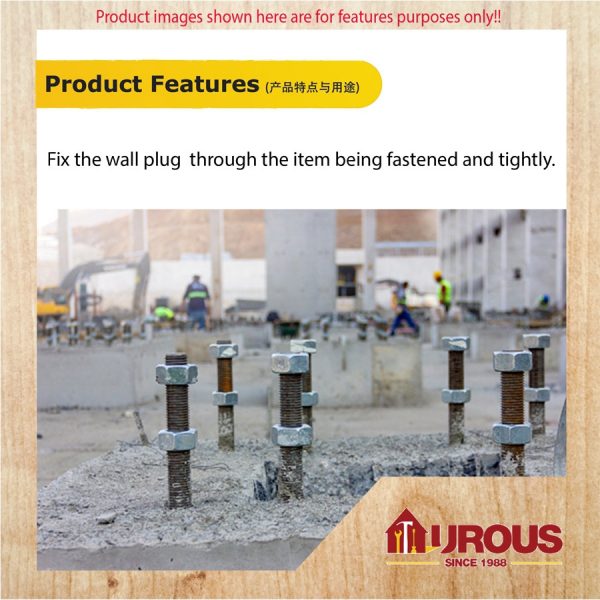

Insert anchor through fixture and tap in until washer contacts fixture.
Tighten bolt with torque wrench to recommended assembly torque.
