FEATURES
- Rip Guard™, the strongest tooth form in the industry
- Rip Guard™ Limited Lifetime Tooth Break Warranty
- Plug Jack™, an all access slot design for fast plug removal
- Bi-metal construction with 8% cobalt for increased wear resistance
SPECIFICATIONS
| Application | Wood, Metal, and Fiberglass |
|---|---|
| Door Thickness Capacity | 1-3/8" to 1-3/4" |
| Backset Capacity | 2-3/8" and 2-3/4" |
| Cross Bore Hole Capacity | 2-1/8" |
| Latch Bore Hole Capacity | 1" |
OVERVIEW
The Milwaukee® Door Lock Installation Kit saves time and frustration when installing locksets and deadbolts. Designed for accuracy and ease of use, the Door Lock Installation Kit makes it simple to align and drill holes in slab doors. Whether you're remodeling, replacing a damaged door or adding a deadbolt, the auto-centering guide and anti-splinter depth stop let you make centered holes with
a clean finish. This versatile kit works with wood and metal interior and exterior doors from 1-3/8" to 1-3/4" thick. The 10-piece kit includes an auto-centering drill guide, anti-splinter depth stop, 2-1/8" Hole Dozer™ hole saw, 1" Hole Dozer™ hole saw, small arbor & PB, arbor adapter and spacer, two 3/32" drill bits and two 1/8" drill bits for pre-drilling holes for latch plate screws.

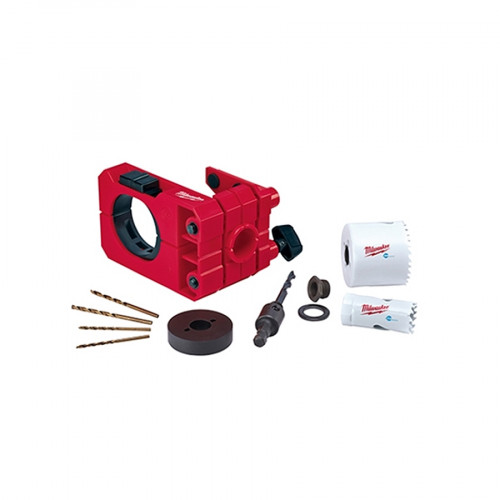

Includes Installation Kit Components :
Door Lock Installation Guide x 1pc
Bi – Metal Hole Saws: 1'' and 2 1/8'' x 2pcs
Arbor and Pilot Bit Assembly x 1pc
Drill Bit 3/32'' x 2pcs
Drill Bit 1/8'' x 2pcs
Hole Saw Thread Adapter and Spacer x 1pc
Depth Stop Insert x 1pc
made in USA
| Weight | 0.85 kg |
|---|---|
| Dimensions | 1 × 1 × 1 cm |
