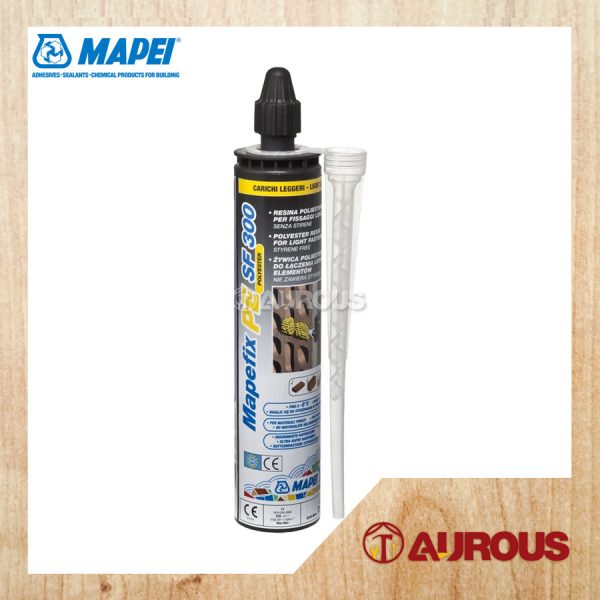

MAPEI MAPEFIX PE SF 300ML [LIGHT GREY]

MAPEFIX PE SF

Styrene-free, polyester resin chemical fastener for heavy loads.

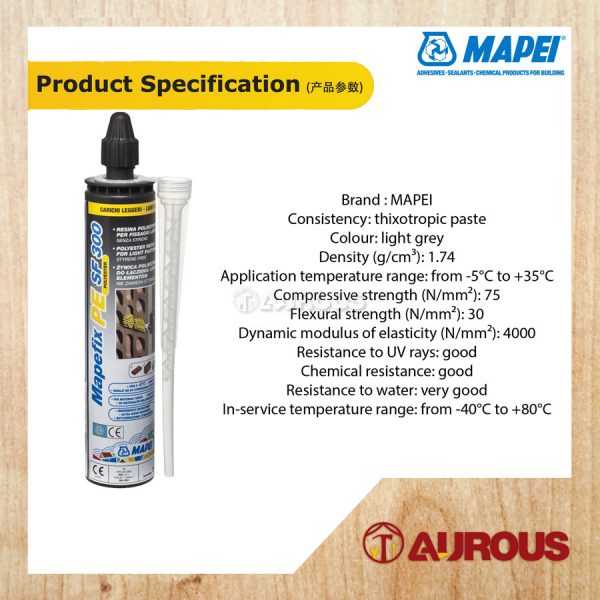

TECHNICAL DATA:
Suitable substrates: all full or perforated substrates.
Recommended penetration technique: drill or hammer-drill.
Condition of hole for application: clean, dry or damp.
Application temperature range of substrate: +5°C – +35°C.
Workability time at +20°C: 6’.
Final hardening time at +20°C: 45’ (dry substrate), 90’ (wet substrate).
Certified diameter of bars: from M8 to M24.
Certification available: CE mark; ETA option 7 (fasteners in compressive side).
Application: extrusion gun.
Packaging: 300 ml, 420 ml.
Storage: 12 months (300 ml) or 18 months (420 ml) at +5°C – +25°C.

Mapefix PE SF is an adhesive for chemical anchoring metal bars in holes made in building materials. It is a two-component, styrene-free product made from a mixture of polyester resins. It has been specifically developed for chemically anchoring steel and zincplated steel threaded and deformed bars, which transmit light loads, to solid and perforated substrates such as non-cracked concrete, heavyweight concrete, stone and mixed masonry. It is also an ideal solution for anchoring close to edges or when there is a limited pitch between each anchor, due to no stress being generated as with conventional mechanical expansion fasteners.

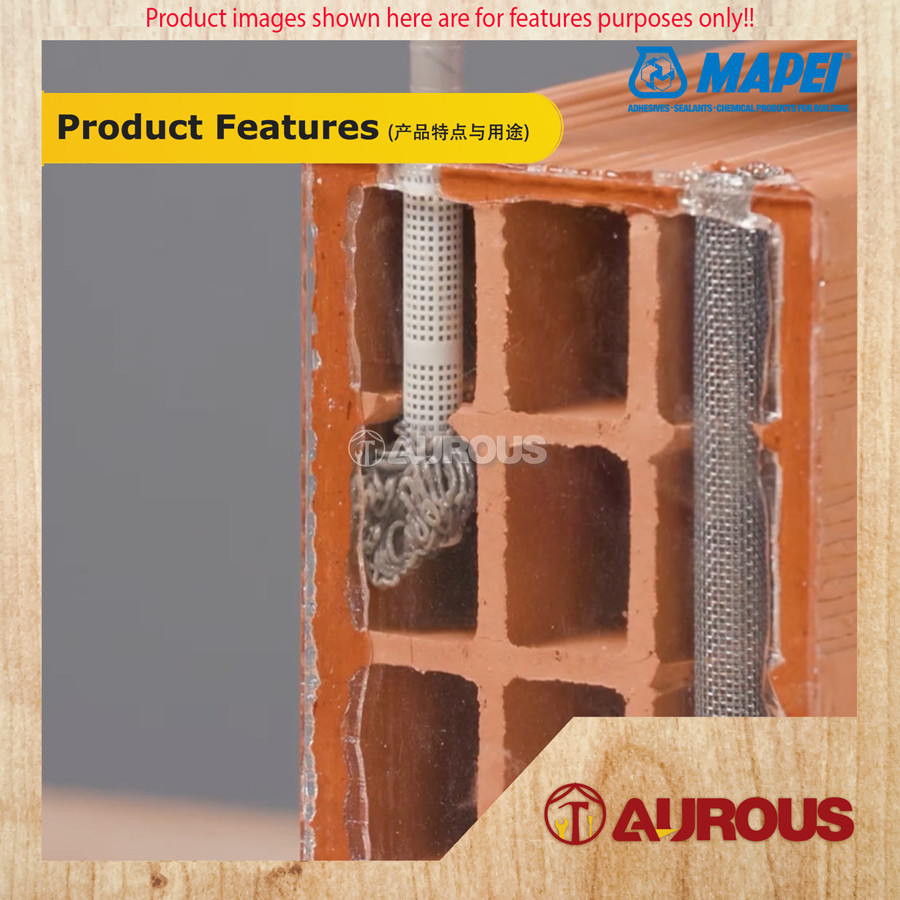

Mapefix PE SF is recommended for anchoring lightweight elements in internal and external substrates with a horizontal, vertical, inclined or overhead axis, and is particularly recommended for anchors in perforated substrates. It may also be used for anchors in damp substrate, and in substrates at temperatures down to -5°C.

Mapefix PE SF is recommended for anchoring elements in place, such as:

• plant equipment;
• sanitary fittings;
• aerials;
• signs;
• window and door fittings.
