TUOSEN MINI LIGHT DUTY PPR WELDING MACHINE (1/2″-1″) / (1/2″-2″)

TUOSEN MINI LIGHT DUTY PPR WELDING MACHINE (1/2"-1") / (1/2"-2")

For welding plastic pipes as PP/PP-R/PE/PP-C pipe and etc.
Welding PPR pipes are much more easier with the PPR Pipe Welding Machine. PPR pipe and fittings are specially for hot and cold water supply system suitable for all potable water applications and heating systems.
Instruction:
Install the heatsink on the fixed welding device, place the welding device on the rack, install the corresponding heating die according to the required pipe specifications, and use the hexagon to tighten, usually small in the front end in the back.

Power on: power on the green indicator light, until the green light is off, the red light is on, indicating that the fuse into the automatic temperature control state, you can start operation. Note: In the automatic temperature control state, red light, green light will be alternately lit, indicating that the fuse is in a controlled state, does not affect the operation.
Welded pipe: pipe cutter with a straight cut off the pipe, the pipe and pipe at the same time without rotating into the fuse die, and in accordance with the requirements of the table to operate, to reach the heating time immediately after the pipe and pipe removed from the die at the same time , Quickly and without rotation directly into the required depth of uniform, so that the joints open into uniform flange.

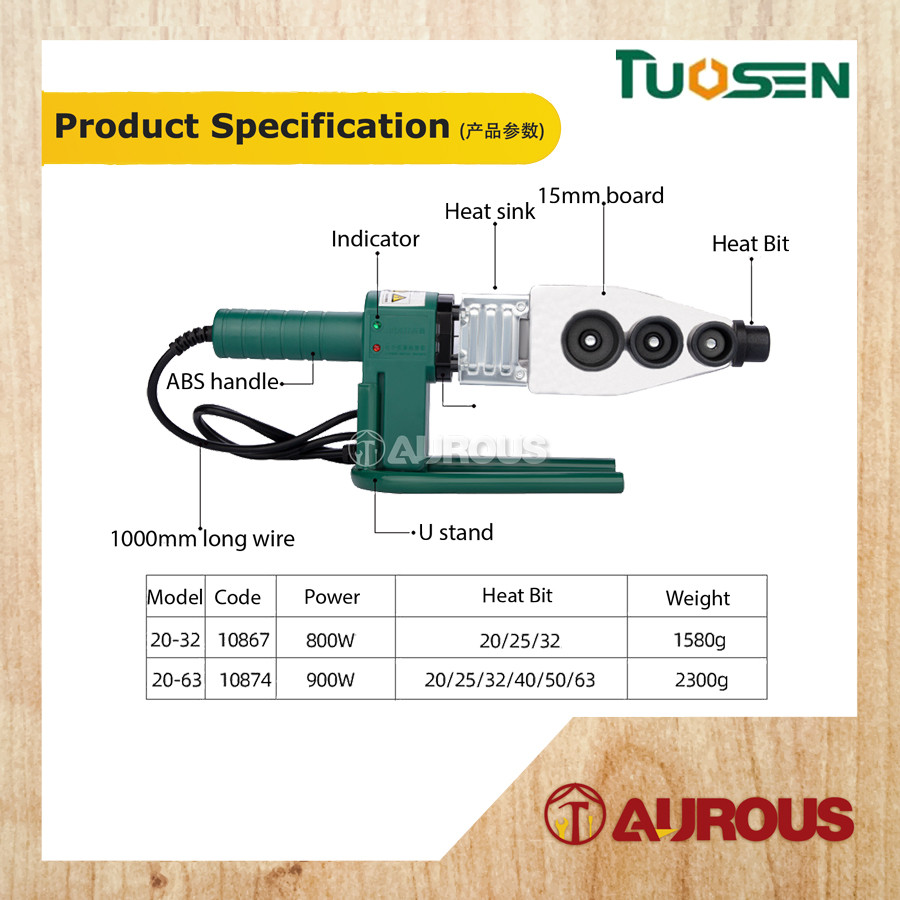

Specification:

Brand : TUOSEN
Model : 20-32
Code : 10867
Power : 800w
Heat Bit : 20,25,32MM
Weight : 1580g

Brand : TUOSEN
Model : 20-63
Code : 10874
Power : 900w
Heat Bit : 20,25,32,40,50,63MM
Weight : 2300g
