STAINLESS STEEL SLEEVE ANCHOR WALLPLUG M6/M8/M10 (1 PIECE)

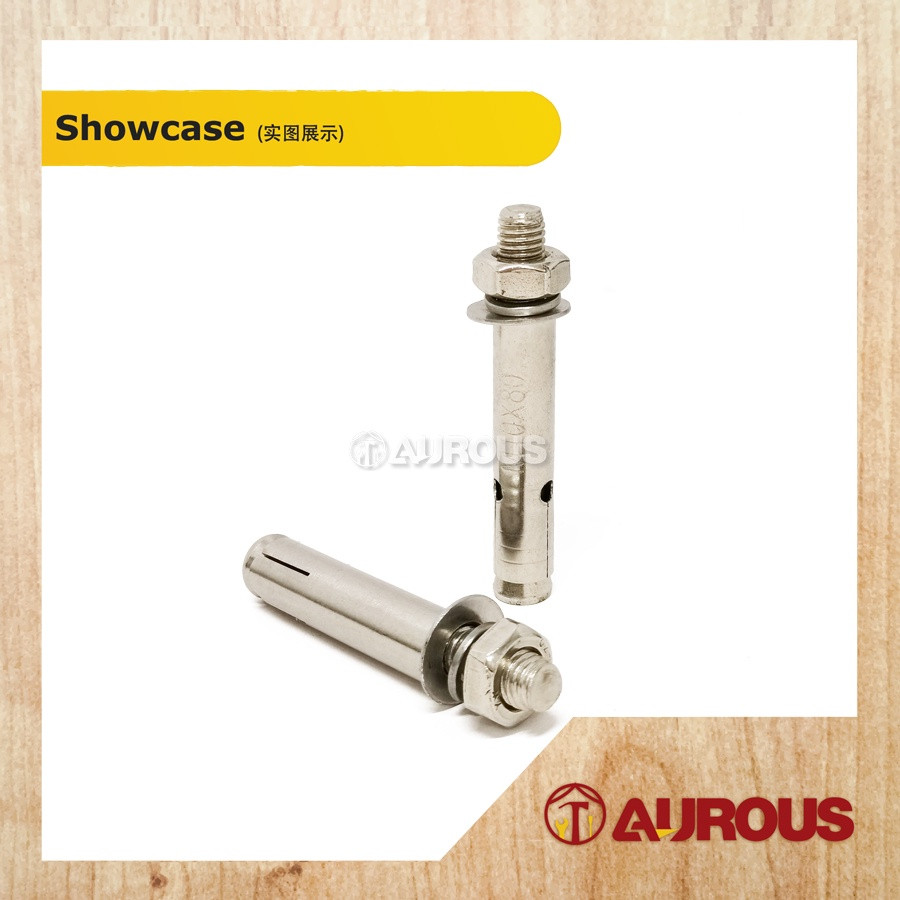

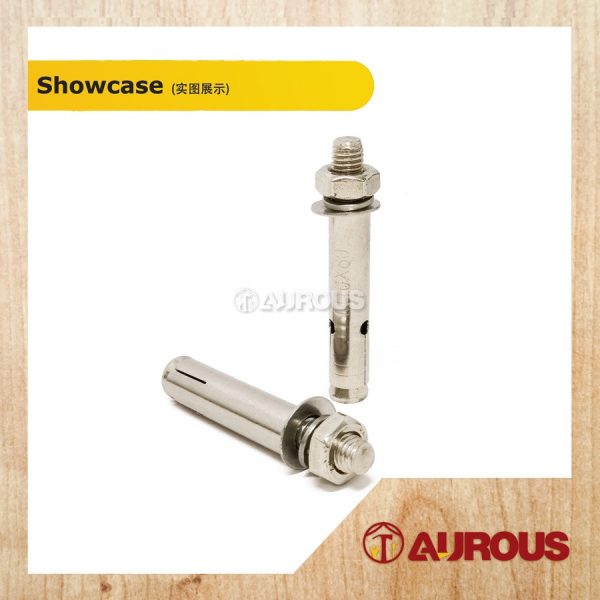

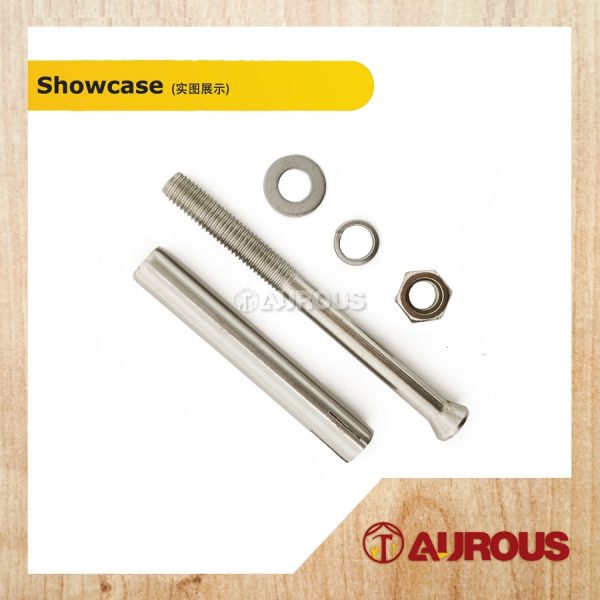

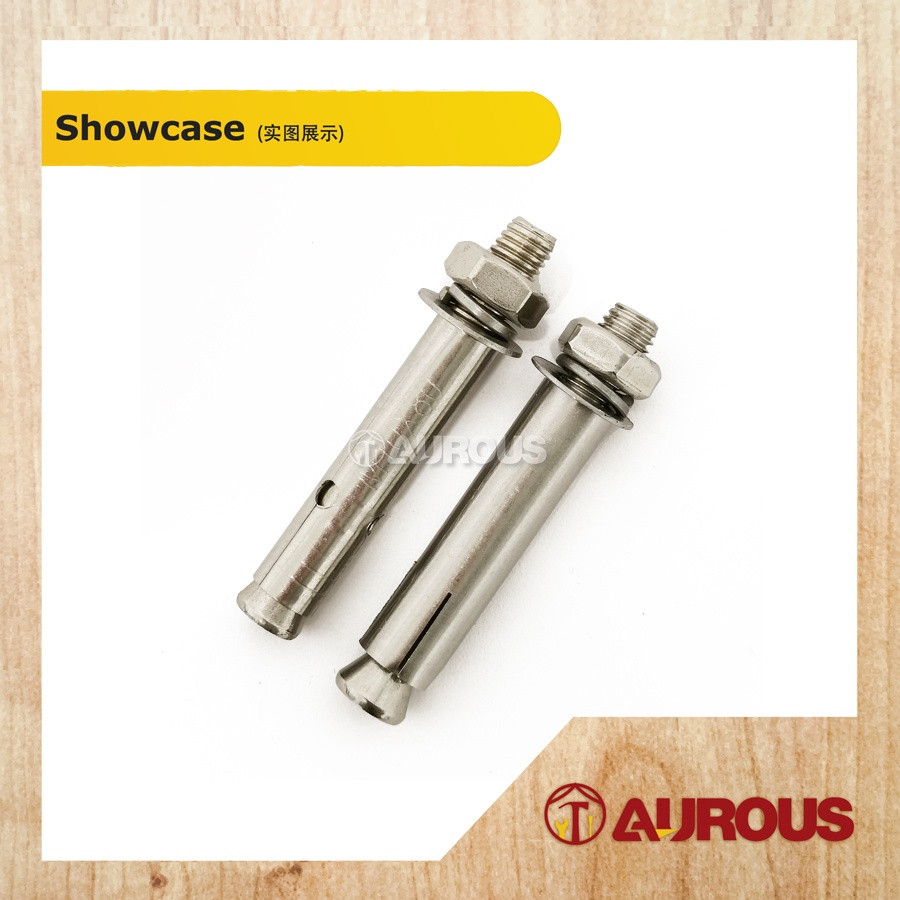

Sleeve type anchors feature a split expansion sleeve over a threaded stud bolt body and integral expander, nut, spring washer and flat washer. Applications: be widely used in fence burglarproof doors and windows canopy air conditioning rack fixation home decoration engineering etc.

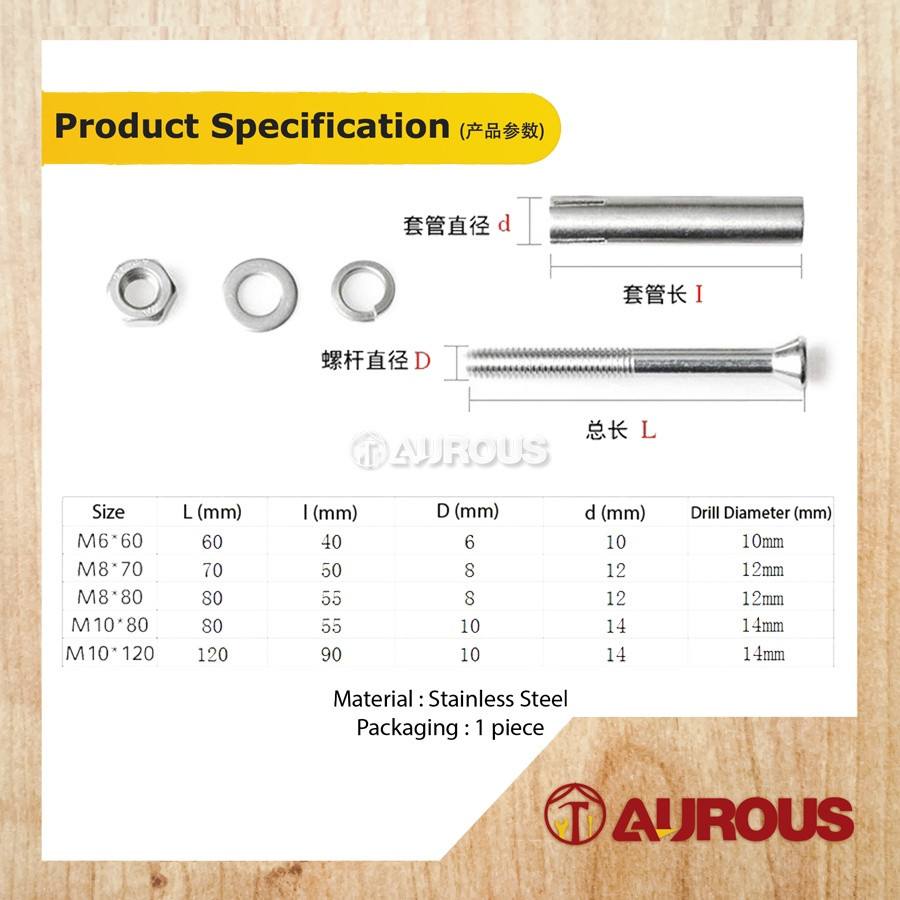

Size and Diameter :
M6 X 60MM = 1/4'' x 2 1/4'' Ø10 MM
M8 X 70MM = 5/16'' x 2 3/4'' Ø12 MM
M8 X 80MM = 5/16'' x 3'' Ø12 MM
M10 X 80MM = 3/8'' x 3'' Ø14 MM
M10 X 120MM = 3/8'' x 4 1/2'' Ø14 MM
Material: Stainless steel
Applications:
Light to medium duty into concrete, brick and block
Cable trays
Window and door frames
Shelving and racking
Features:
Heavy loading capacity
Pre-assembled for faster & easier installation
Sleeve design improve holding power
Anti corrosion
Technical Information:
Drill correct diameter hole to recommended depth.
Clean hole thoroughly with a nylon brush. Remove debris by way of vacuum pump, compressed air, hand pump etc.
Insert anchor through fixture and tap in until washer contacts fixture.
Tighten bolt with torque wrench to recommended assembly torque.
| Weight | 0.1 kg |
|---|---|
| Dimensions | 2 × 2 × 8 cm |
| Size | 1/4'' x 2 1/4'', 5/16'' x 2 3/4'', 5/16'' x 3'', 3/8'' x 3'', 3/8'' x 4 1/2'' |
