ST GUCHI SHOWER HINGES GH101 (WALL TO GLASS 90°) (MID 90°)

Installation Instruction :
 A. Fix up the position of the glass door hinge and mark the incision position on
 the glass.
 B. Incising the glass according to the specification of the glass door hinge
 (As the glass Incision Illustration)
C. Fill up the gap between the fixture and the activeboard of glass door hinge with the asbestos cushion in turn to clamp the glass.
D. Tighten the screw

Installation Standard:
A. Max.capacity: 45 KGS
B. Glass material: Toughened glass
C. On-off Frequency: 100 thousand times
D. Glass thickness: 8mm to 12mm
E. Feather: The door returns to self-closing state while the distance between the door frame and the door is 30 degree

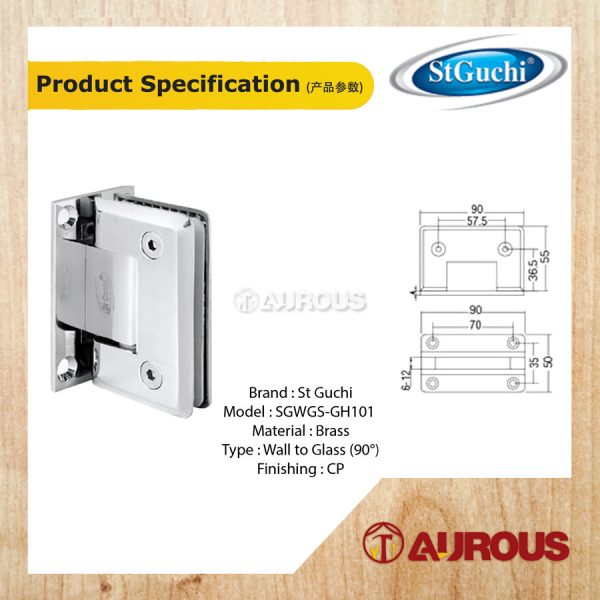

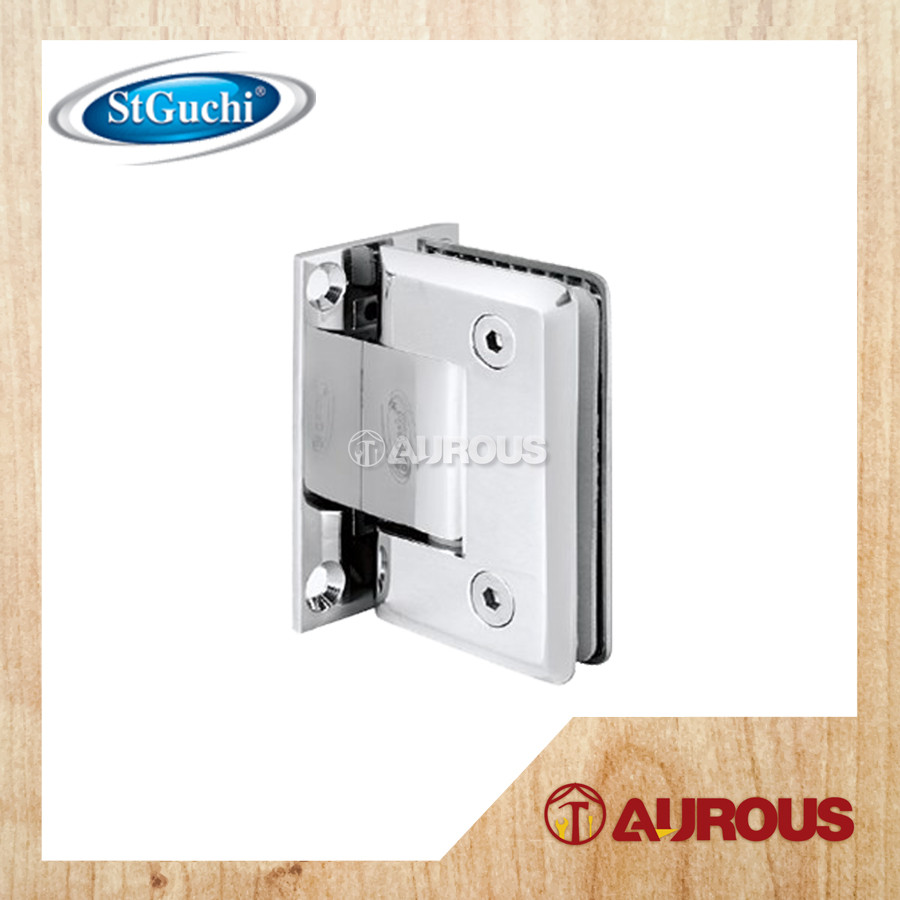

SGWGS-GH101
Material : Brass
Type : Wall to Glass (90°)
Finishing : CP
