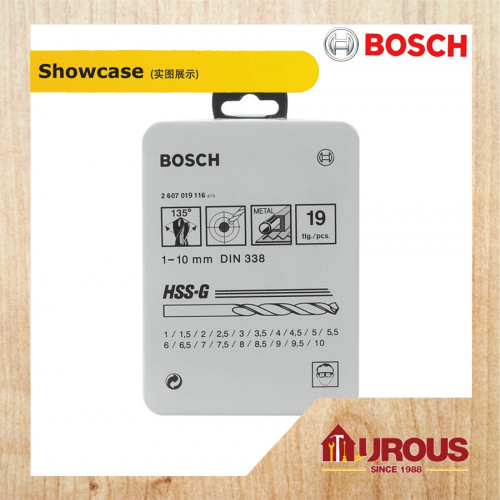

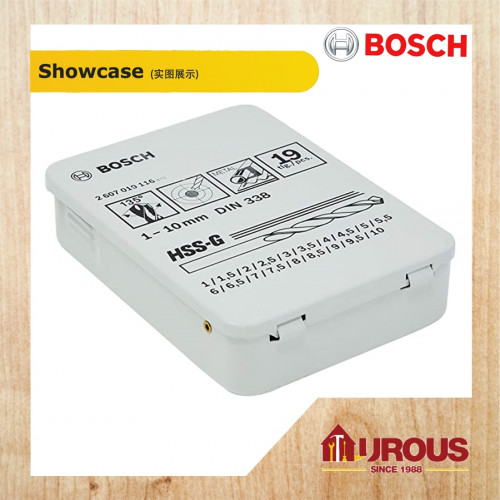

BOSCH METAL DRILL BIT SET 1MM-10MM DIN 338 (19 PCS) 2607019116

ITEM INCLUDED :

BOSCH METAL DRILL BIT SET 1MM-10MM DIN 338 (19 PCS) 2607019116

The HSS Twist Drill Bit Ground is for drilling through metal with maximum precision. The bit's exposed 135-degree self-centring split-point tip combines active cutting and perfect centring without wandering, delivering maximum precision. The split-point tip also eliminates any need to pre-punch or pilot drill for up to 10 mm. This precision-ground bit made of HSS (high-speed steel) enables up to 40% faster drilling rate and up to 50% lower feed pressure than standard-ground HSS drill bits with chisel edges. This bit is designed for drilling holes in alloyed and non-alloyed steel, cast steel, cast iron, sintered iron, malleable cast iron, non-ferrous metals and hard plastics. It has a cylindrical shank system (shank equal to drill bit diameter) and is intended for use in drill stands and drill drivers.

The HSS Twist Drill Bit Ground is manufactured to DIN 338. The drill bit is Type N (flute angle) with a 135-degree tip and a diameter tolerance of h8.

Materials that can be processed

• Steel/ferrous metal
• Non-ferrous sheet metal
• Alloyed/non-alloyed steel
• Gray iron
• Hard plastic

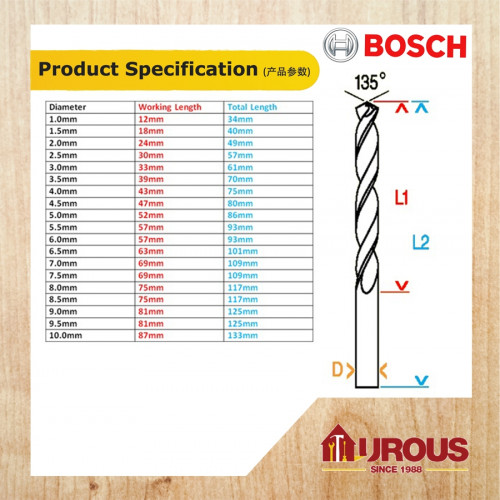

Specification
