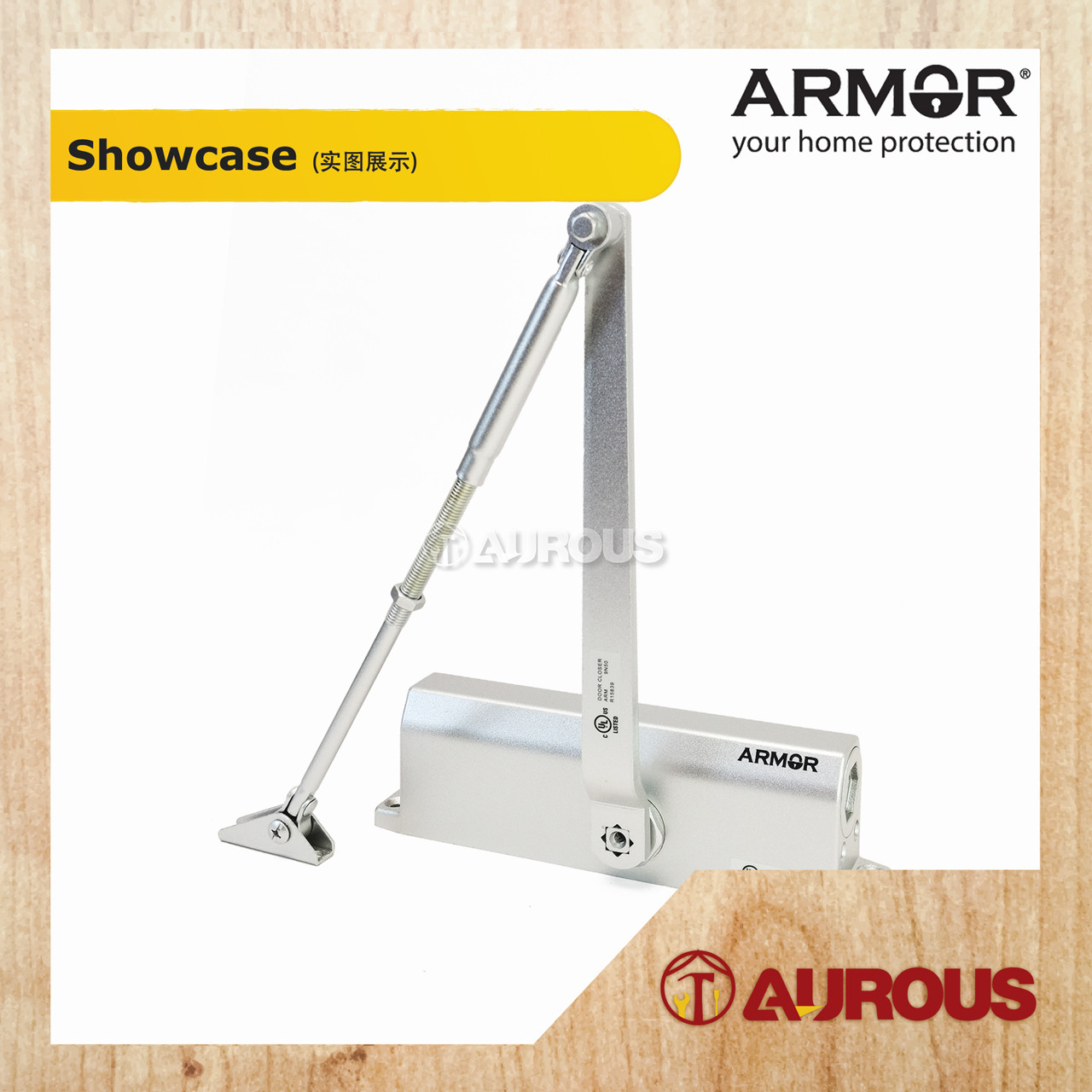

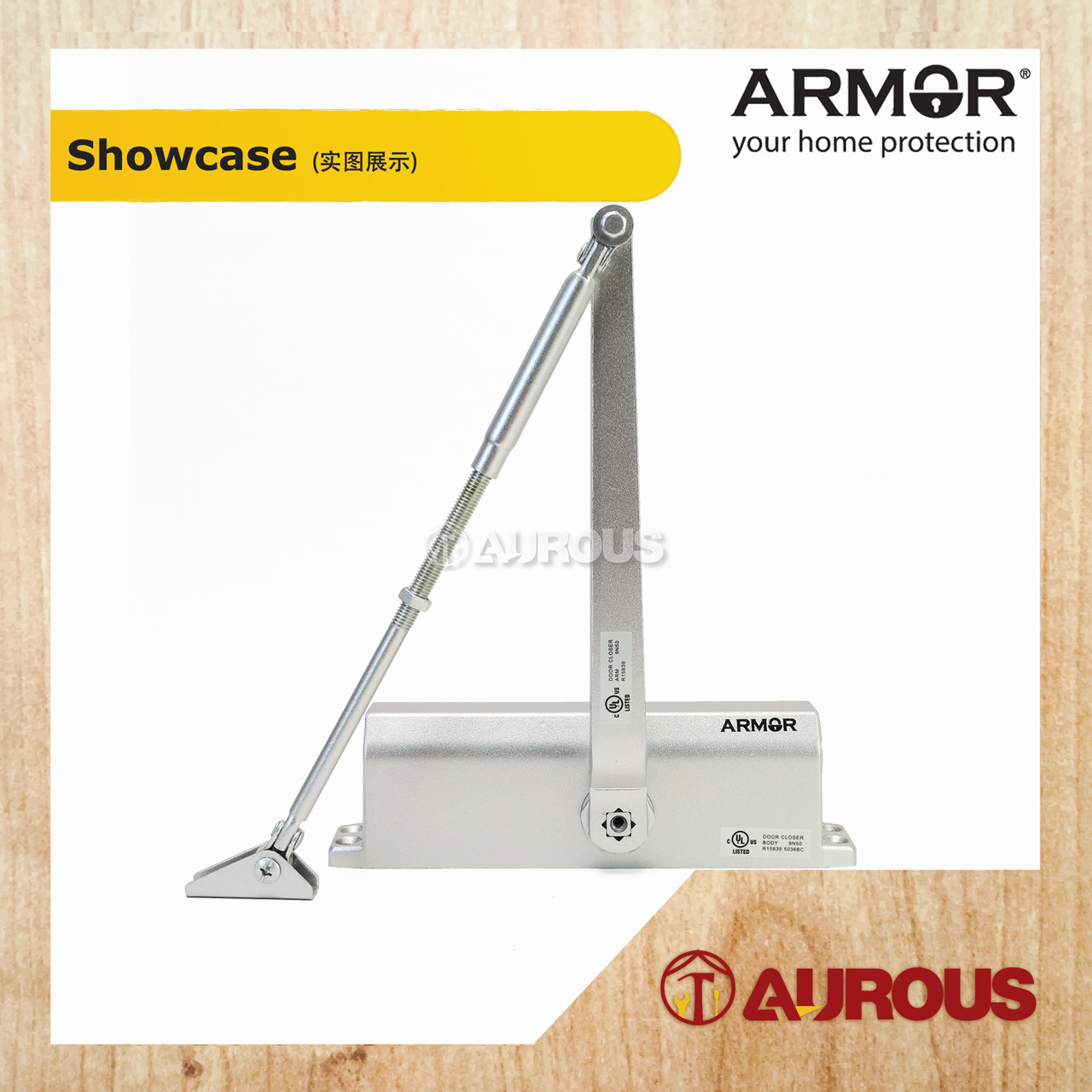

ARMOR HEAVY DUTY DOOR CLOSER BACK CHECK ADC-5004BC /5005BC /5006BC (BACK CHECK FUNCTION + FIRE RATED)

ARMOR HEAVY DUTY DOOR CLOSER BACK CHECK ADC-5004BC /5005BC /5006BC (BACK CHECK FUNCTION + FIRE RATED)

Installation Instruction Is Provided Together With The Product.
Aluminium Material Type Of Door Closer.

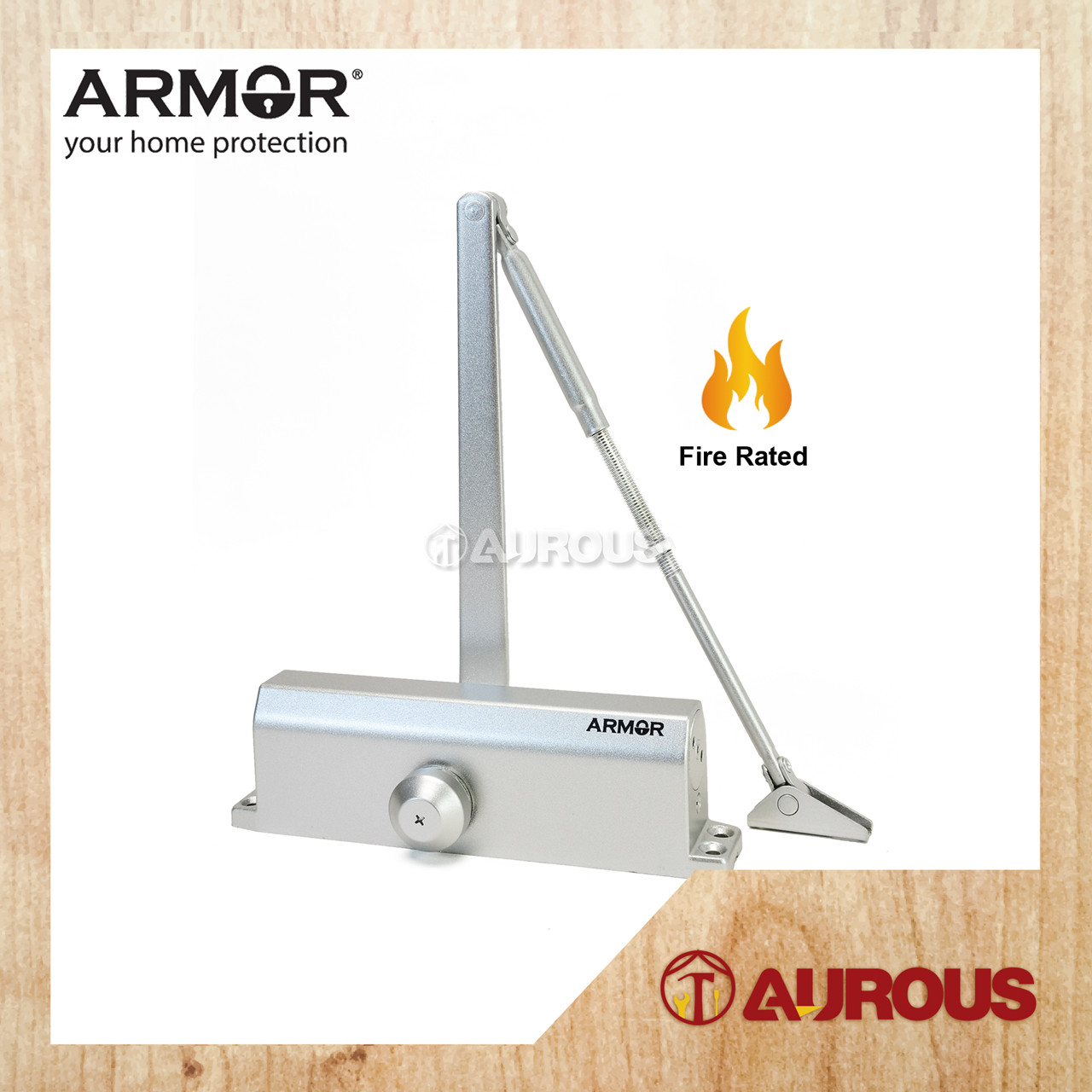

Fire Rated Door Closer.

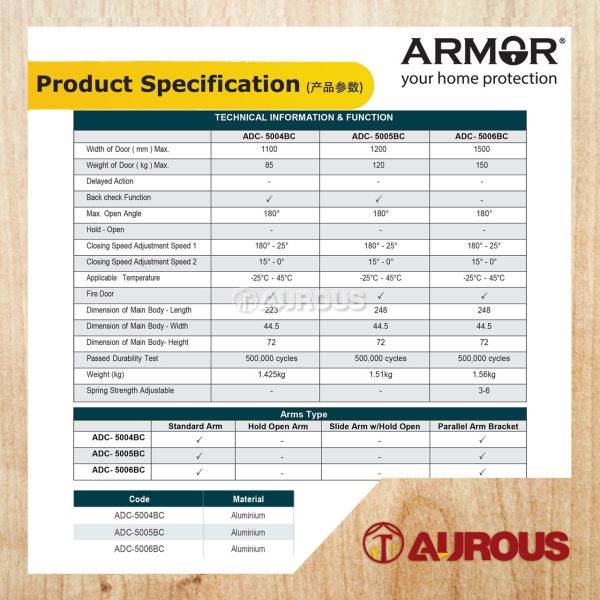

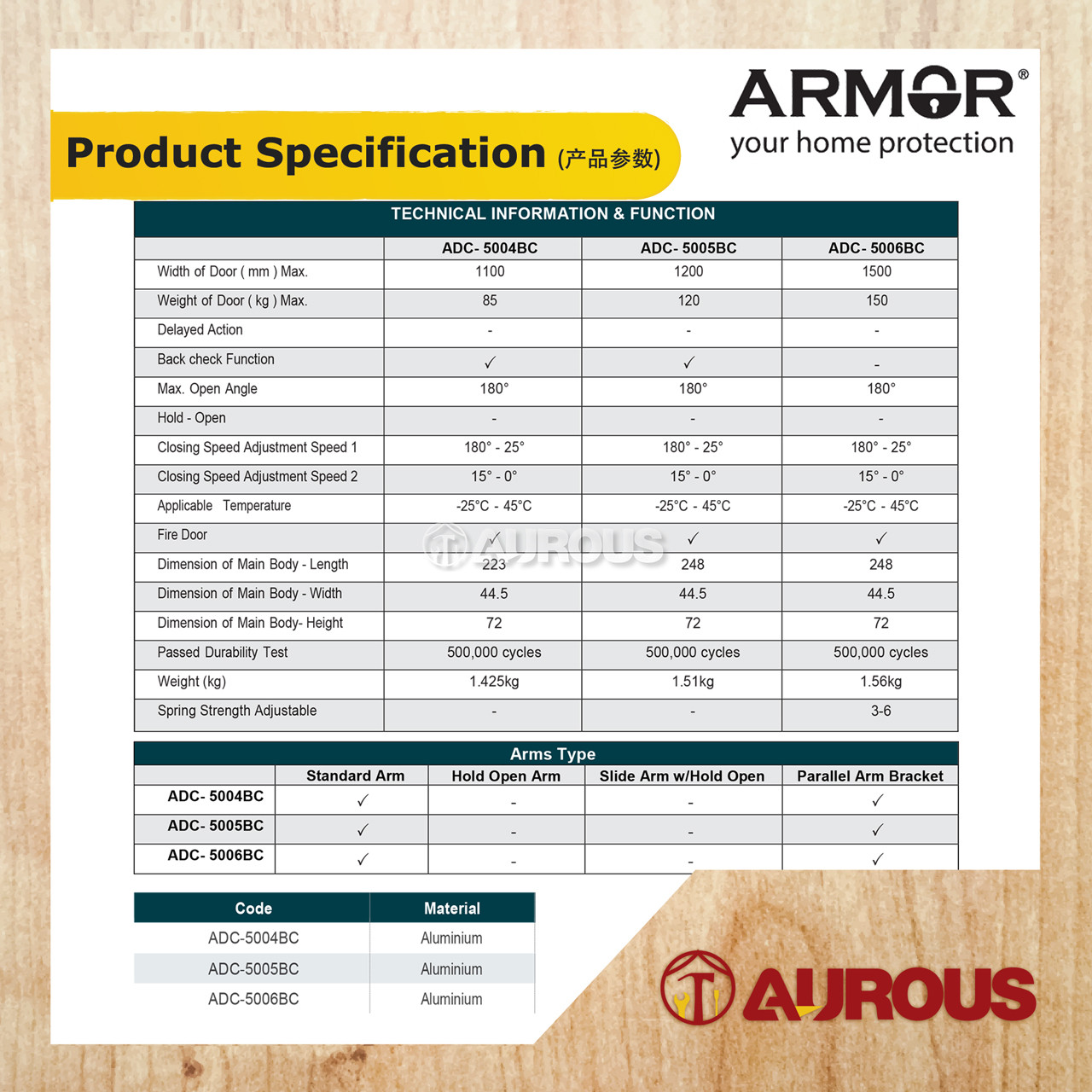

Brand : Armor
Model : ADC-5004BC
Material : Aluminium
Width of Door ( mm ) Max. : 1100
Weight of Door ( kg ) Max. : 85
Delayed Action : –
Back check Function : yes
Max. Open Angle : 180°
Hold – Open : –
Closing Speed Adjustment Speed 1 : 180° – 25°
Closing Speed Adjustment Speed 2 : 15° – 0°
Applicable Temperature : -25°C – 45°C
Fire Door  :  yes

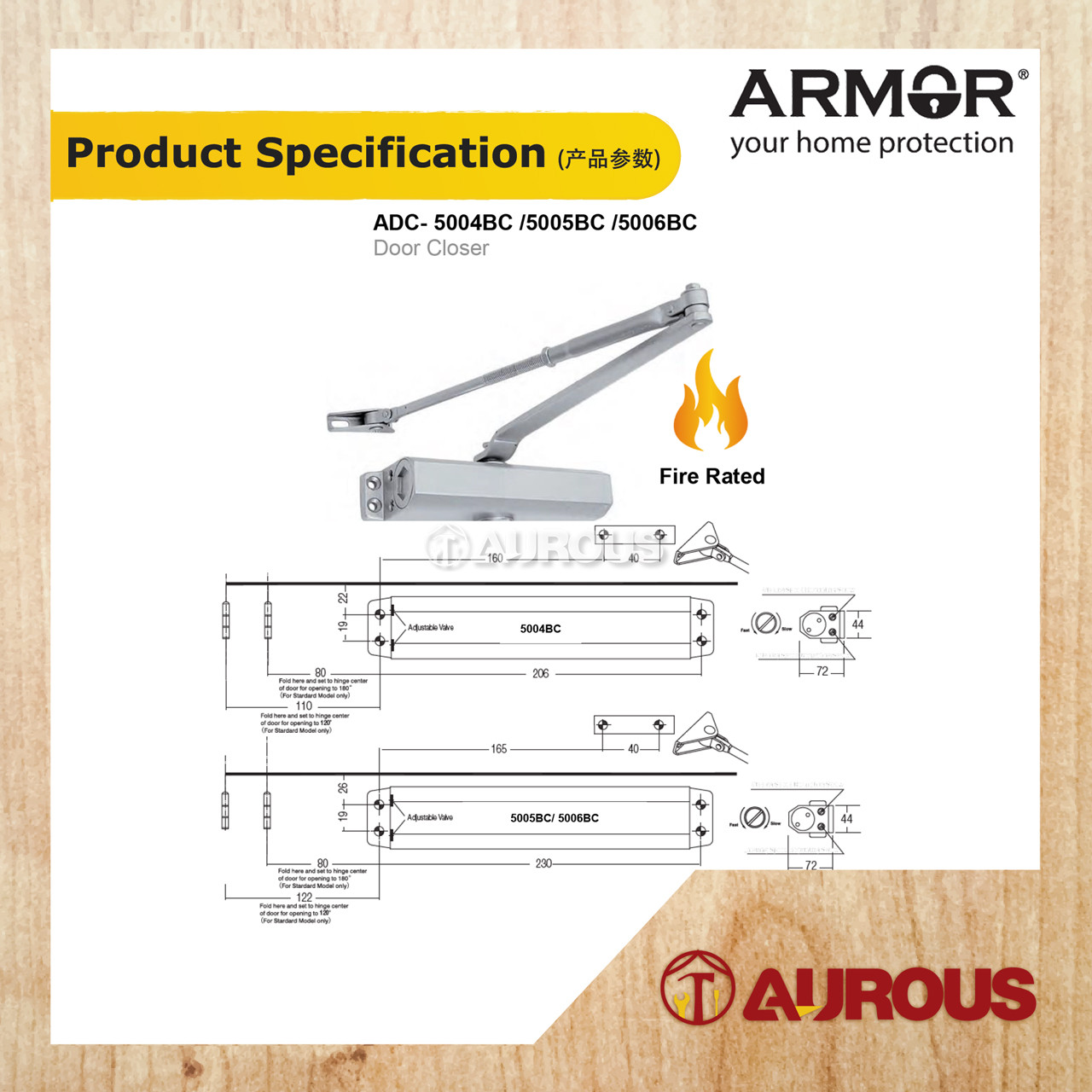

Dimension of Main Body – Length : 223
Dimension of Main Body – Width  : 44.5
Dimension of Main Body- Height : 72
Passed Durability Test  : 500,000 cycles
Weight (kg) : 1.425kg

Brand : Armor
Model : ADC-5005BC
Material : Aluminium
Width of Door ( mm ) Max. : 1200
Weight of Door ( kg ) Max. : 120
Delayed Action : –
Back check Function : yes
Max. Open Angle : 180°
Hold – Open : –
Closing Speed Adjustment Speed 1 : 180° – 25°
Closing Speed Adjustment Speed 2 : 15° – 0°
Applicable Temperature : -25°C – 45°C
Fire Door  :  yes
Dimension of Main Body – Length : 248
Dimension of Main Body – Width  : 44.5
Dimension of Main Body- Height : 72
Passed Durability Test  : 500,000 cycles
Weight (kg) : 1.51kg

Brand : Armor
Model : ADC-5006BC
Material : Aluminium
Width of Door ( mm ) Max. : 1500
Weight of Door ( kg ) Max. : 150
Delayed Action : –
Back check Function : yes
Max. Open Angle : 180°
Hold – Open : –
Closing Speed Adjustment Speed 1 : 180° – 25°
Closing Speed Adjustment Speed 2 : 15° – 0°
Applicable Temperature : -25°C – 45°C
Fire Door  :  yes
Dimension of Main Body – Length : 248
Dimension of Main Body – Width  : 44.5
Dimension of Main Body- Height : 72
Passed Durability Test  : 500,000 cycles
Weight (kg) : 1.56kg
Spring Strength Adjustable : 3-6
