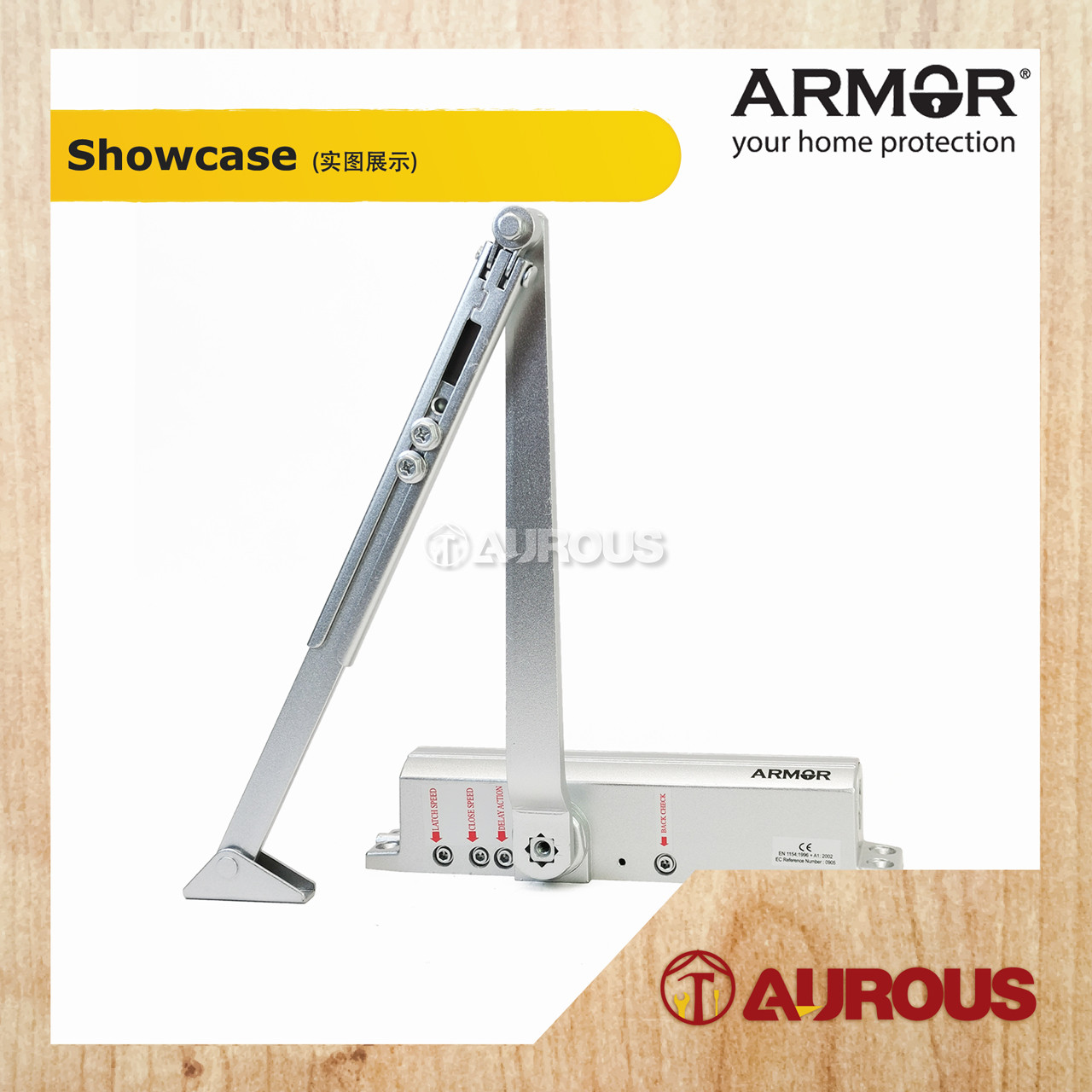

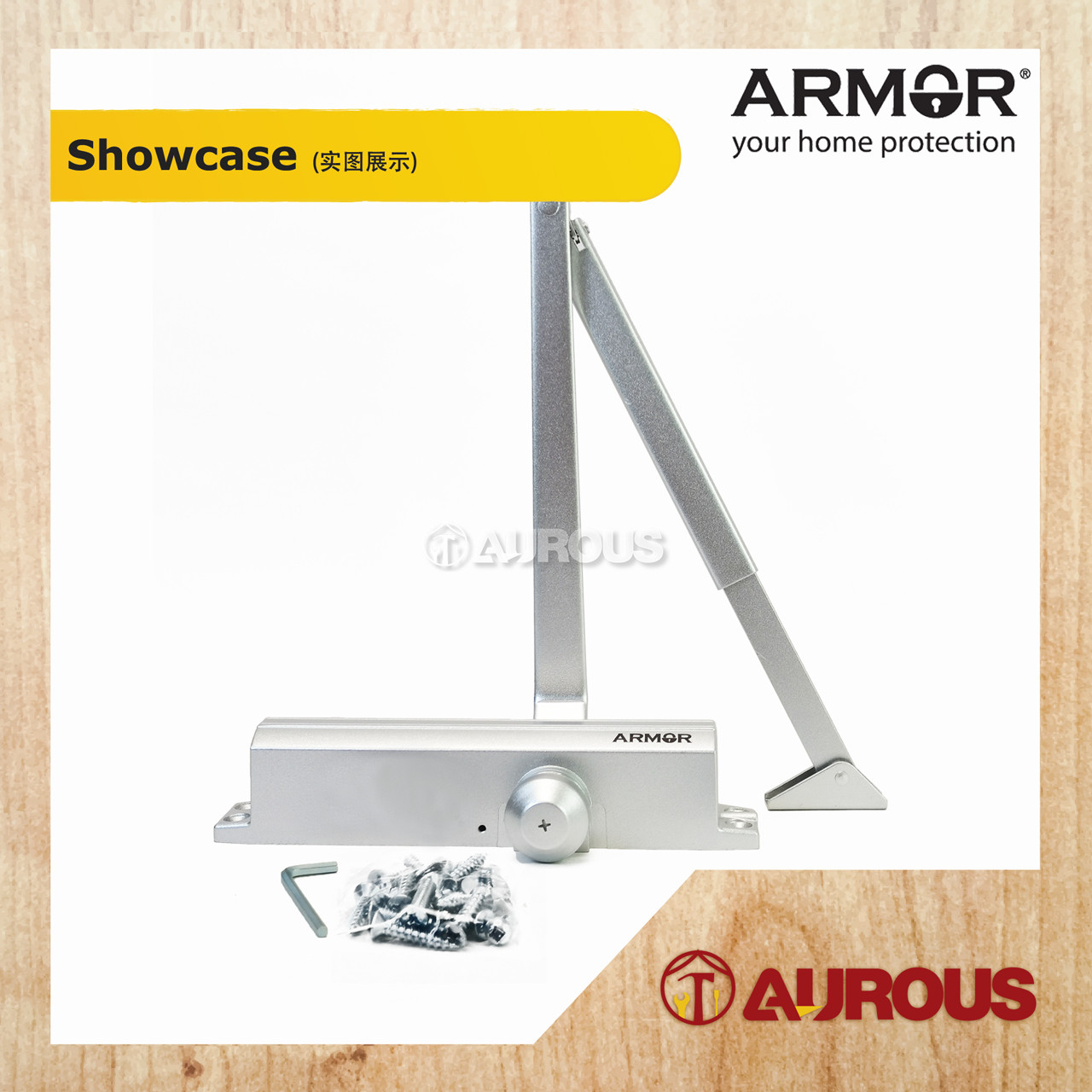

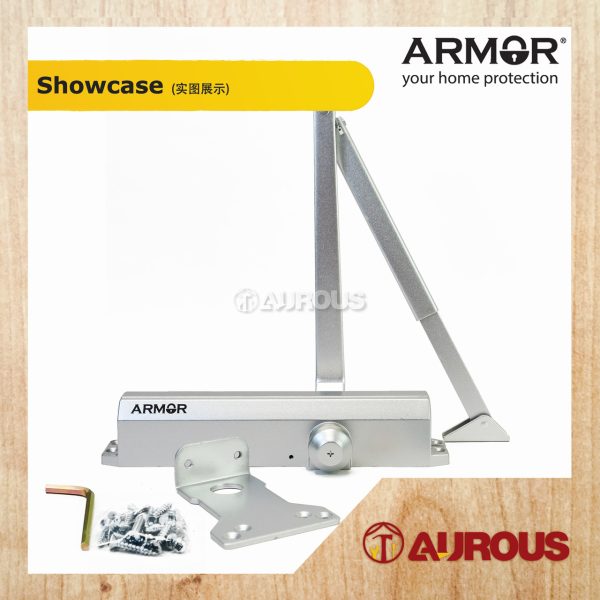

ARMOR DOOR CLOSER BACK CHECK & DELAY ACTION ADC-9024/9027 (BACK CHECK FUNCTION , FIRE RATED)

ARMOR DOOR CLOSER BACK CHECK & DELAY ACTION ADC-9024 /9027 (BACK CHECK FUNCTION + FIRE RATED)

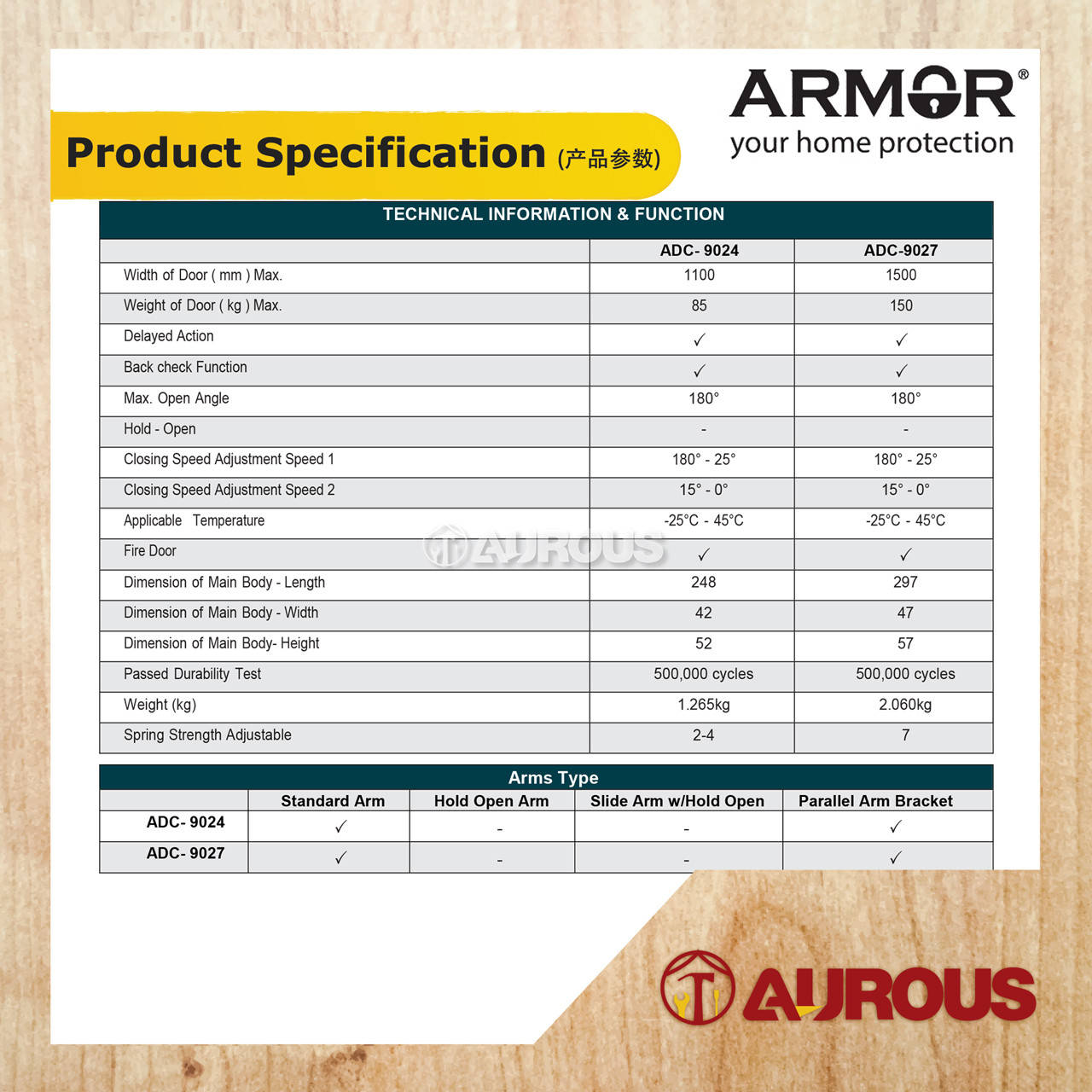

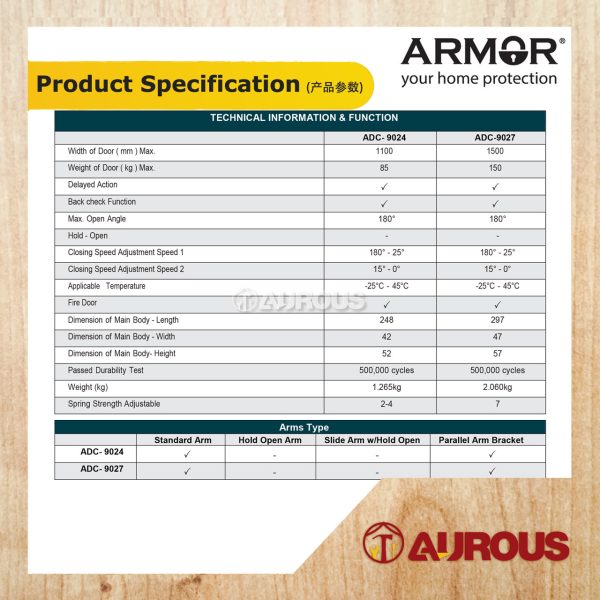

Brand : Armor
Model : ADC-9024
Material : Aluminium
Width of Door ( mm ) Max. : 1100
Weight of Door ( kg ) Max. : 85
Delayed Action : yes
Back check Function : yes
Max. Open Angle : 180°
Hold – Open : –

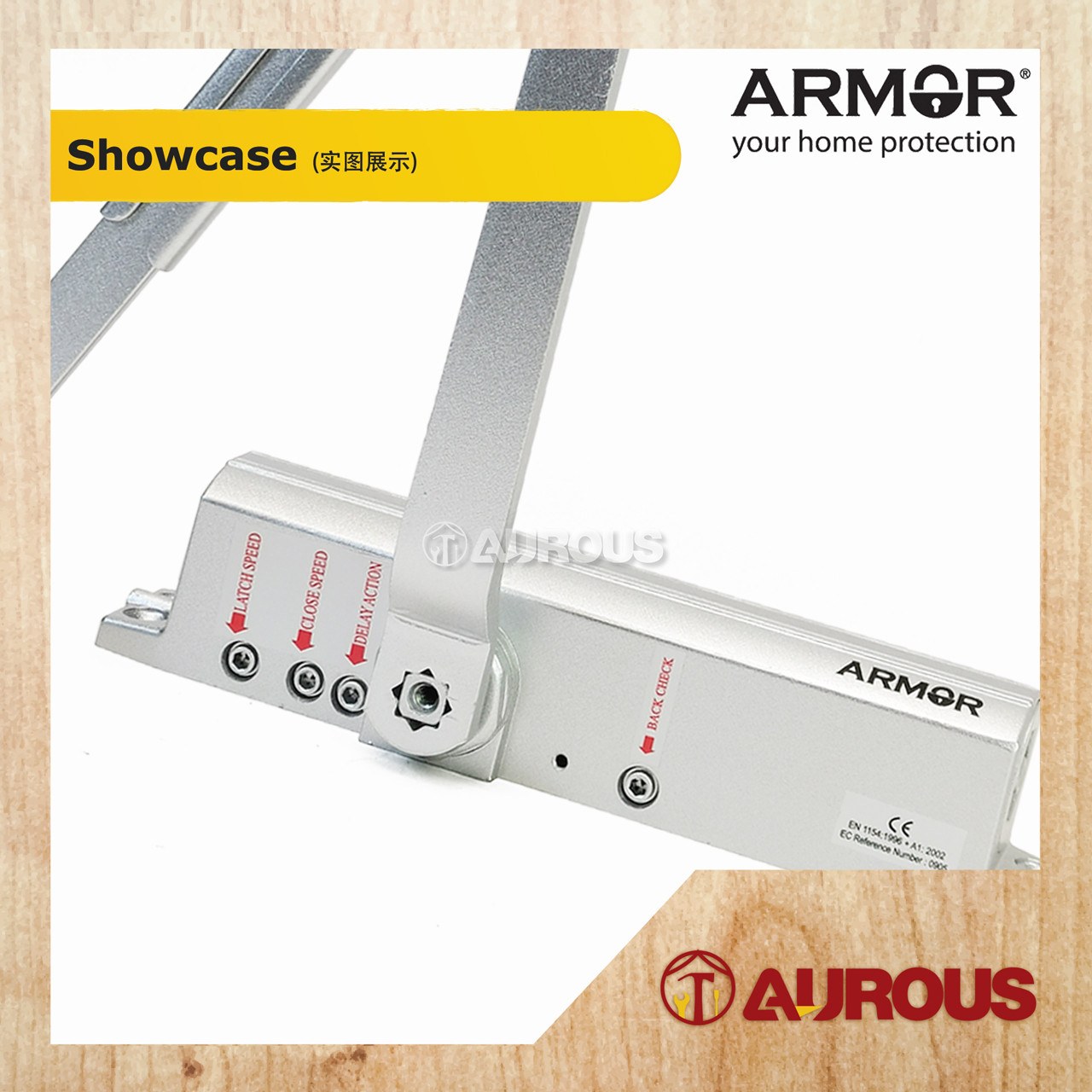

Closing Speed Adjustment Speed 1 : 180° – 25°
Closing Speed Adjustment Speed 2 : 15° – 0°
Applicable Temperature : -25°C – 45°C

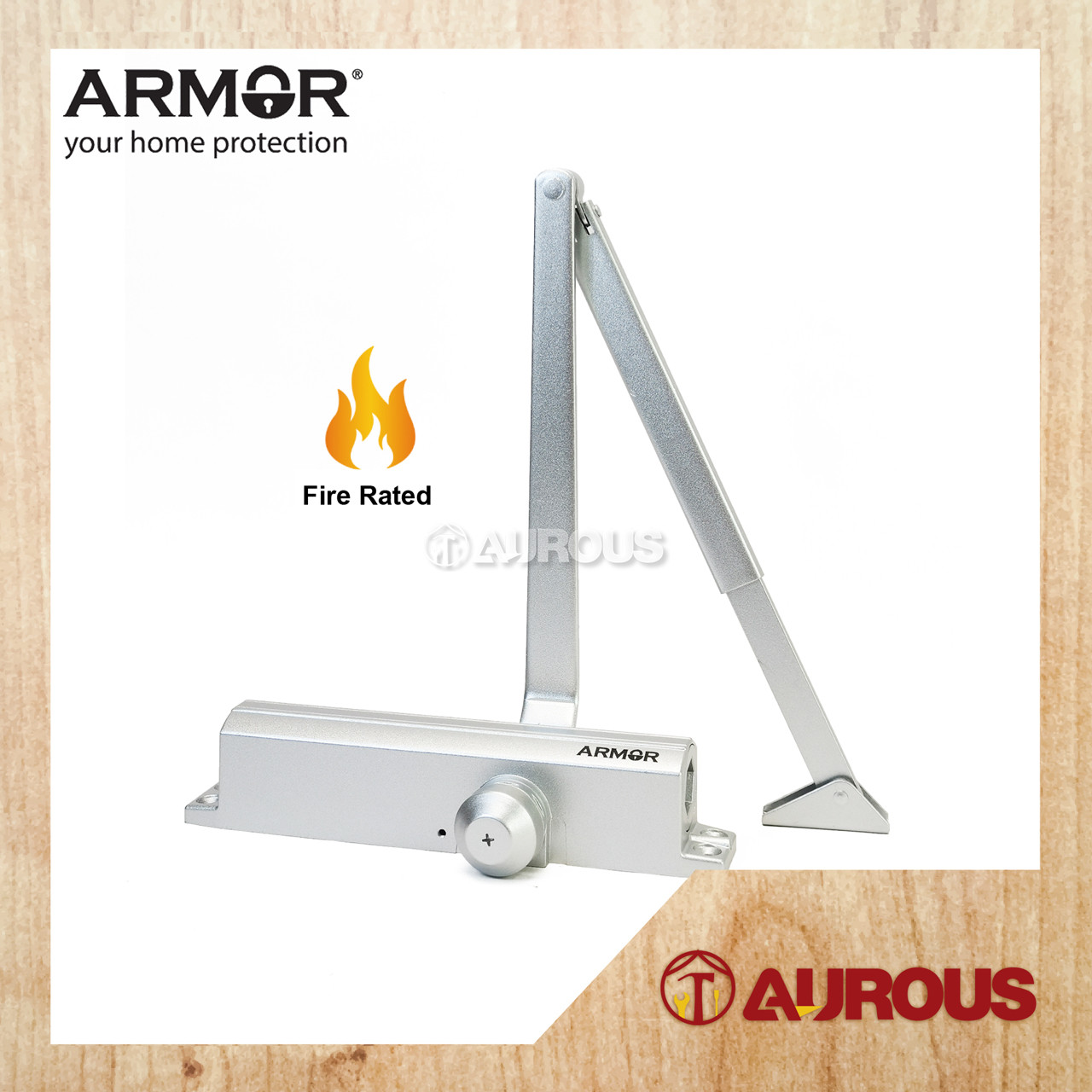

Fire Door  :  yes

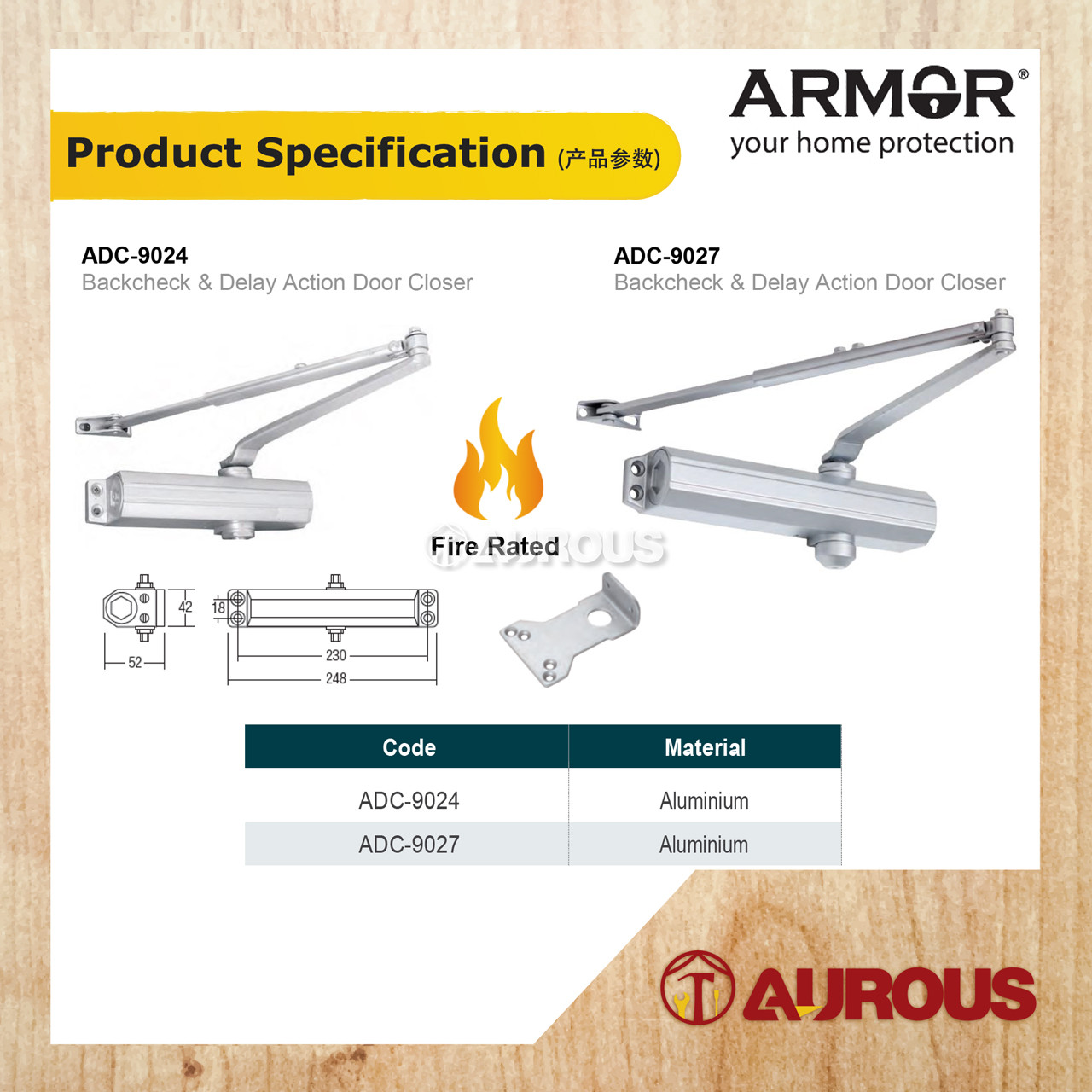

Dimension of Main Body – Length : 224
Dimension of Main Body – Width  : 42
Dimension of Main Body- Height : 52
Passed Durability Test  : 500,000 cycles
Weight (kg) : 1.265kg
Spring Strength Adjustable : 2-4

Brand : Armor
Model : ADC-5005BC
Material : Aluminium
Width of Door ( mm ) Max. : 1500
Weight of Door ( kg ) Max. : 150
Delayed Action : yes
Back check Function : yes
Max. Open Angle : 180°
Hold – Open : –
Closing Speed Adjustment Speed 1 : 180° – 25°
Closing Speed Adjustment Speed 2 : 15° – 0°
Applicable Temperature : -25°C – 45°C
Fire Door  :  yes
Dimension of Main Body – Length : 297
Dimension of Main Body – Width  : 47
Dimension of Main Body- Height : 57
Passed Durability Test  : 500,000 cycles
Weight (kg) : 2.060kg
Spring Strength Adjustable : 7
