750PCS ELETRICAL WIRE CONNECTOR CABLE HEAT SHRINK TUBE JOINT CONNECTION KIT

750PCS ELETRICAL WIRE CONNECTOR CABLE HEAT SHRINK TUBE JOINT CONNECTION KIT

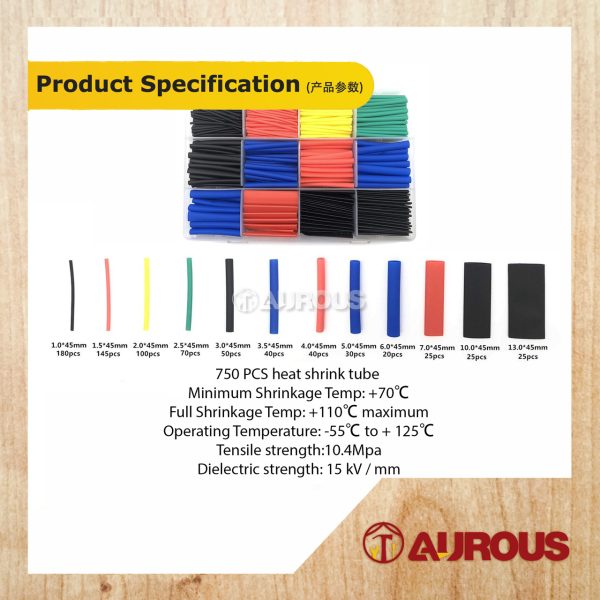

SPECIFICATION:

750 PCS heat shrink tube
Minimum Shrinkage Temp: +70℃
Full Shrinkage Temp: +110℃ maximum
Operating Temperature: -55℃ to + 125℃
Tensile strength:10.4Mpa
Dielectric strength: 15 kV / mm

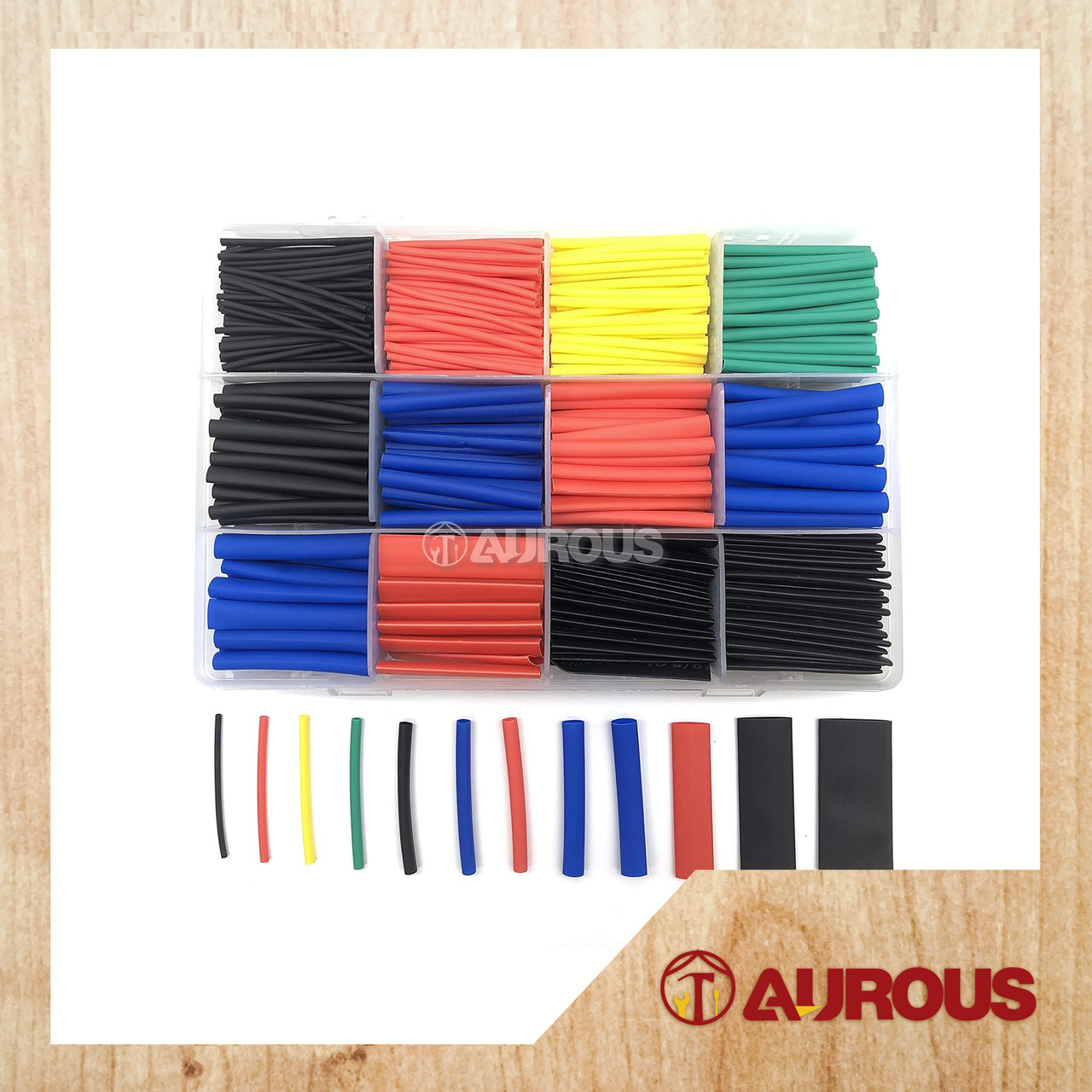

750 PCS heat shrink tube
1.0 x 45mm: 180 PCS, Black
1.5 x 45mm: 145 PCS, Red
2.0 x 45mm: 100 PCS, Yellow
2.5 x 45mm: 70 PCS, Green
3.0 x 45mm: 50 PCS, Black
3.5 x 45mm: 40 PCS, Blue
4.0 x 45mm: 40 PCS, Red
5.0 x 45mm: 30 PCS, Blue
6.0 x 45mm: 20 PCS, Blue
7.0 x 45mm: 25 PCS, Red
10.0 x 45mm: 25 PCS, Black
13.0 x 45mm: 25 PCS, Black

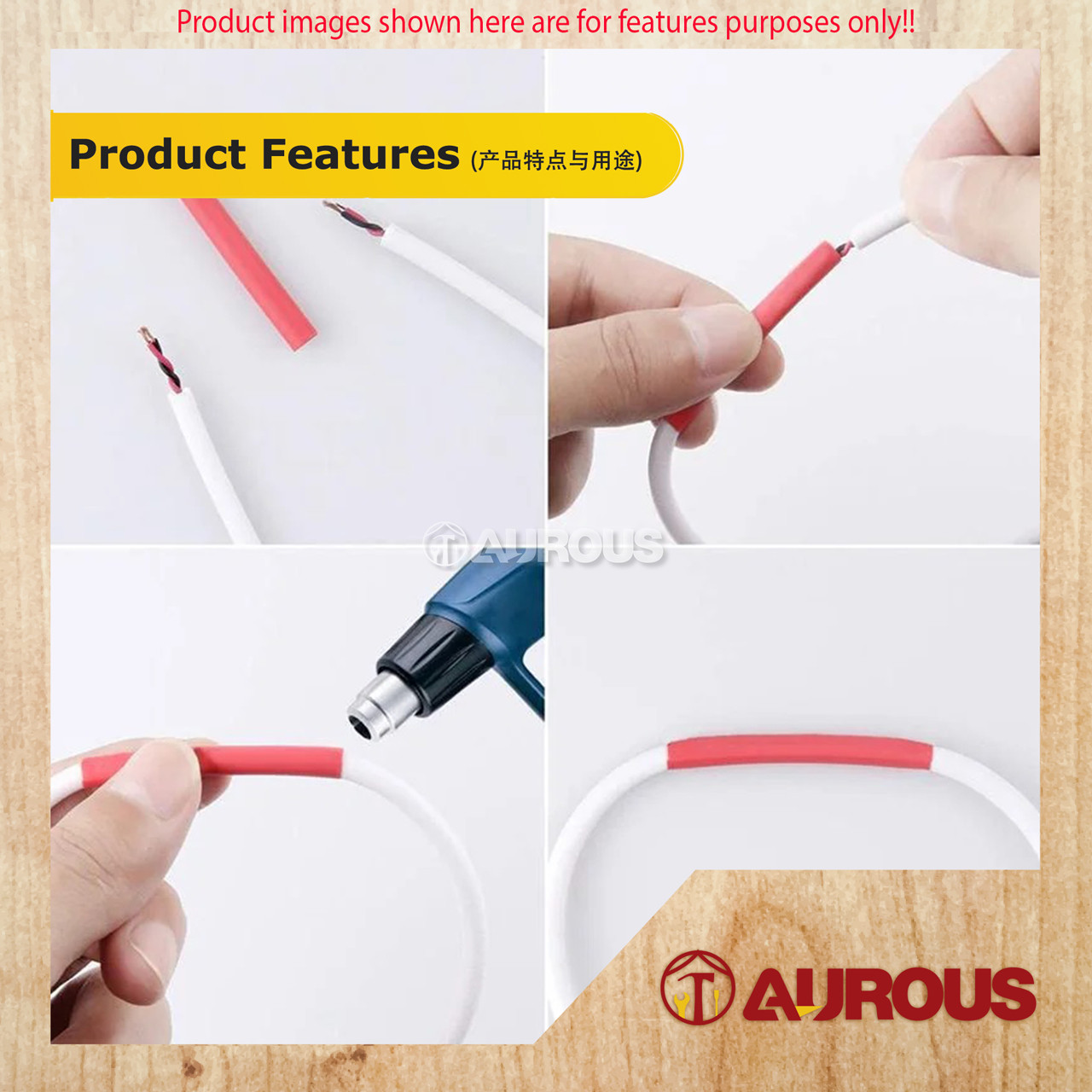

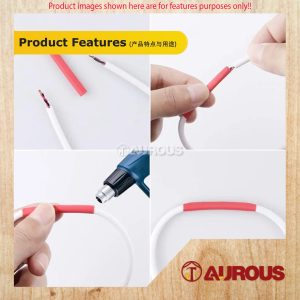

How to use:
1.Choose the right size connector to use
2.Insert the wires to shrink tube from both ends.
3.Heat shrink tube slowly and evenly with a heat gun.
4.Start with you heat gun on its highest setting until it melts, then lower the setting and seal the ends

Note:
No need to crimp for the wire connectors ,Just use a heat gun and you can finish your project
